Turnbuckle Form Aligner With Flat Plate

per FA
3 reviews

The Ellis Form Aligner's primary use is for column and wall form support. Align forms for walls, columns or beams easily with Ellis Coil Type Wall Brace Turnbuckles.

Availability: In Stock

Item #




8 lb


Product Overview

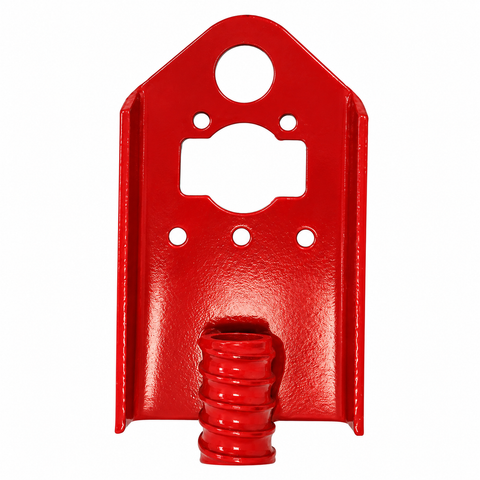

The Ellis Form Aligner can be attached quickly to the top or bottom end of a 2x4 brace to secure forms during pouring.  The rolled corner of the angle iron allows the Ellis Wall Brace to fit snug against the 2x4 lumber thus providing increased strength to the brace.  Bracing and alignment are fast and sure with Ellis Wall Braces.


  • 1" self-cleaning coil threads with 6" adjustment.
  • Standard flat end will accept 3/4" -7/8" diameter stake.
  • Flat Plate End
  • 2" long welds insure strength.
  • Weight is 8 lbs. each.
