Product Overview

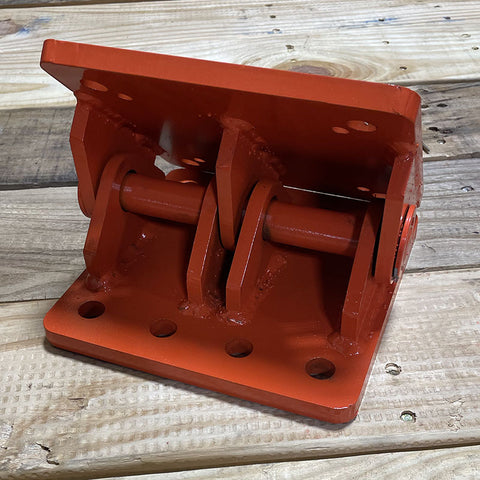

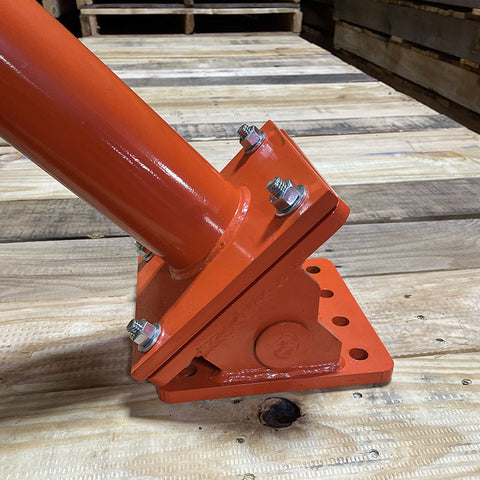

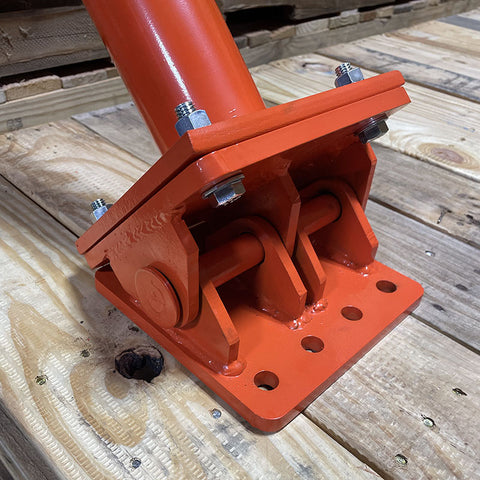

Add a pivoting flat plate to the base of any Light or Heavy Duty Steel Shore. Constructed of ASTM A36 steel plate and a 1" diameter hinge pin provides ultimate safe load capacity.
*Contact Ellis customer support for load rating information
Specifications

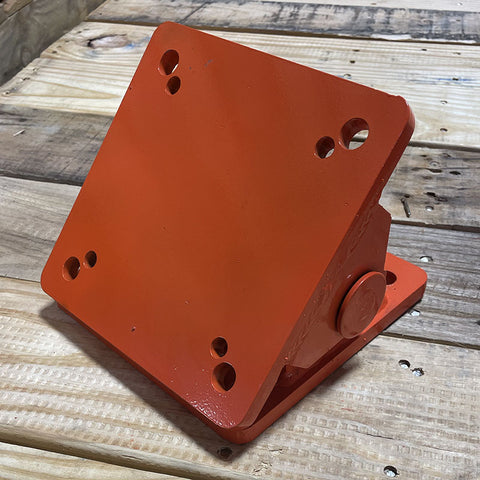

Top plate - ASTM A36 , 1/2"x8"x8" Steel Plate, 4- 1/2" holes for mounting to Light Duty Steel Shores and 4- 5/8" Holes for mounting to Heavy Duty Steel Shores
Hinge Brackets- ASTM A36 , 3/8" thick, 4 on bottom, 3 on top
Hinge Pin - 1" diameter, 8.125" long, ASTM A36 hot rolled

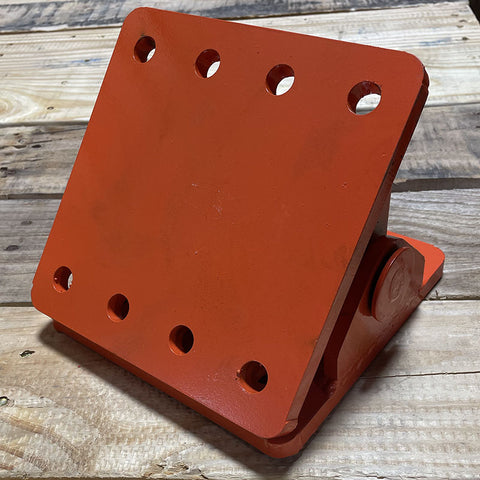

Base Plate - ASTM A36 , 1/2"x8" x8", 8 - 5/8" Holes
Shop Drawings:
| Item Number | Shop Drawing (.PDF) |
| BOP-FP88 | Coming Soon |
