When it comes to building strong, reliable structures, the foundation starts with expertly formed columns. Whether you’re a contractor managing a large commercial build, an engineer overseeing infrastructure projects, or a construction professional seeking dependable solutions, understanding the ins and outs of column forming is essential to your success.
At Ellis Manufacturing, we know that every column counts. Our column forming products, engineered for precision, safety, and versatility, have been trusted on jobsites across the United States for decades. From robust column forms to innovative clamps and accessories, we’re committed to making your work more efficient, your results more consistent, and your jobsite safer.
This comprehensive guide was created to empower you with practical advice, clear product overviews, and proven best practices for every phase of concrete column forming. Inside, you’ll discover how to select the right column form, avoid common pitfalls, and leverage Ellis’s expertise and responsive support at every stage of your project.
Ready to build with confidence? Dive in and see why Ellis Manufacturing is the partner you can trust for all your column forming needs.
What is Column Forming?
Column forming is the process of shaping and supporting concrete columns during pouring and curing. A column form is a mold that holds wet concrete in place until it hardens, creating the desired size and shape for a project. This step lays the groundwork for safe, durable buildings and infrastructure.
It can refer to different processes in manufacturing or data management. However, in the construction industry, it’s all about creating reliable, professional-grade concrete columns. Choosing the right column form is critical for project success. It impacts everything from structural integrity to final appearance.

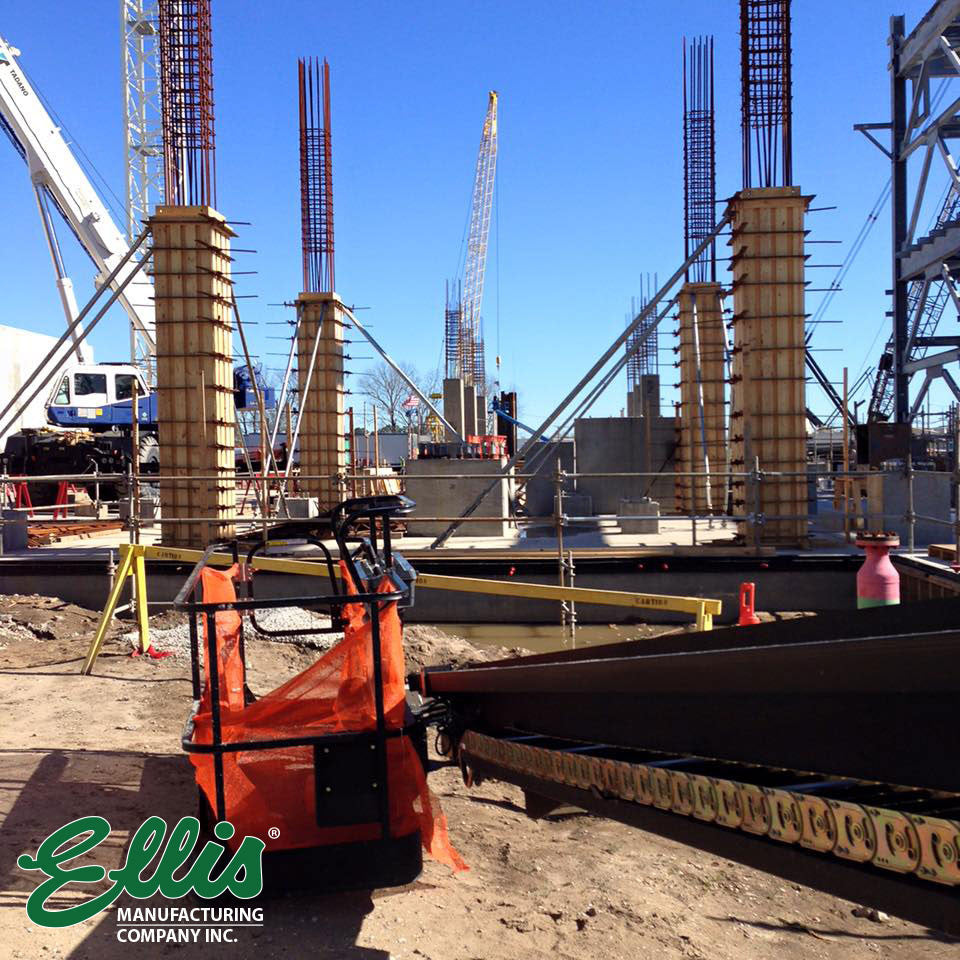

The Role of Column Forms in Modern Construction
Concrete column forms is important for construction, from high-rise buildings to bridges. Proper forming ensures columns meet engineering standards, safety regulations, and deliver a clean finish.
The right column form streamlines installation, minimizes errors, and helps keep your jobsite running efficiently on any project. At Ellis Manufacturing, we design our column forming systems with the users in mind. We aim to address the real-world challenges faced by construction professionals.
Types of Concrete Column Forms & Systems
Column Form Types
Choosing the right type of column form is essential for project success. The most common options include wood, steel, fiberglass, and plastic forms. Each of these has unique advantages:
- Wood Forms: Cost-effective and easy to customize for various shapes and sizes. Ideal for smaller or one-off projects but less durable for repeated use.
- Steel Forms: Extremely durable and reusable, offering excellent strength and a smooth finish. Best for large-scale or repetitive column forming but may require a higher initial investment.
- Fiberglass Forms: Lightweight, reusable, and capable of producing complex or decorative shapes. They offer a superior finish but can be more expensive.
- Plastic Forms: Lightweight and easy to handle, suitable for circular concrete forms, concrete pillar and post forms. Often used for quick installations and smaller columns.
Selecting the appropriate column form depends on your project’s size, budget, and finish requirements. Understanding the pros and cons of each system helps ensure you achieve the best results for your construction needs.
Ellis Column Forming Clamps & Systems
Ellis Manufacturing’s column forming products include a range of specialized clamps, beams, and accessories. These are engineered for unique job site challenges and professional results.
Scissor-Type Column Forming Clamps
- Features: Adjustable steel bars with rugged cast wedges for fast, accurate assembly, and secure clamping of wood column forms.
- Benefits: Enables rapid setup and removal, saving significant labor time on multi-pour projects. Reusable and durable for repeated jobsite use.
- Technical Specs:
- Made from high-strength, welded steel for maximum load-bearing.
- Available in various lengths to fit columns of different sizes.
- Patented one-weld clamp design for superior strength and reliability.
- Designed to fit standard lumber sizes (commonly 2x4, 2x6, etc.).
- Selection Tips: Use the Ellis Concrete Column Form Designer Tool to calculate the exact number and spacing of clamps needed for your column dimensions and pour height.
Ellis Horizontal Adjustable Beams
- Features: Heavy-duty steel beams with adjustable length to span various widths and adapt to different support requirements.
- Benefits: Ideal for supporting formwork over irregular spans or creating temporary platforms. Flexible for both vertical and horizontal applications.
- Technical Specs:
- Constructed from galvanized or painted high-strength steel.
- Adjustable length options to suit a range of jobsite needs (specific lengths and capacities detailed in Ellis product literature).
- Engineered for high load ratings, with safety factors built in.
-
Selection Tips: Choose the beam length and capacity based on your column size and expected load.
Single Bar Column Forming Clamp
- Features:Heavy-duty, single steel bar design with precision-machined clamp ends for quick, secure attachment to wood column forms.
- Benefits:Compact, straightforward design makes it easy to transport, handle, and store.
-
Technical Specs:
- Constructed from high-strength steel for maximum durability.
- Available in multiple lengths to accommodate a wide range of column dimensions.
Purlin Splicers and Bracing Turnbuckles
- Features: Steel connectors and adjustable turnbuckles for stabilizing and connecting slab and beam forms.
- Benefits: Enhance formwork rigidity, minimize movement during concrete placement.
- Technical Specs: Manufactured from galvanized steel, compatible with standard lumber and Ellis systems.
- Selection Tips: Use for added bracing on tall or heavily loaded forms.
Base Plate Extensions
- Features: Attachments to increase the base area of shores or clamps for better stability on soft or uneven surfaces.
- Benefits: Prevents sinking or shifting, especially in outdoor or variable site conditions.
- Technical Specs: Heavy-duty steel construction; available in multiple sizes.
- Selection Tips: Recommended for use on soil, gravel, or other non-solid bases.
Ellis’s commitment to precision engineering and ongoing support means you get more than just hardware. You gain a true partner on every project. Their field-tested and patented solutions ensure your column form is safe and built to last.
“We’re not just selling a product, we’re offering a partnership to help our customers achieve the best possible results, every time.”
— Clay Holmboe, CEO of Ellis Manufacturing
How to Select the Right Column Form
Key Factors to Consider
Your choice of a column forming system is part of making your project safe and successful. To find the perfect one for your job, keep these key factors in mind:
Column Size and Shape
Determine the exact dimensions and shape of your columns (square, rectangular, circular, or custom shapes). The size will dictate the type and number of column forms, clamps, and supporting hardware required.
Concrete Mix and Finish Requirements
The type of concrete and desired surface finish may influence your choice of form material (wood, steel, fiberglass, or plastic). For architectural finishes or exposed columns, opt for forms that deliver smooth, consistent results.
Project Budget and Timeline
Assess your budget for materials and labor. Reusable systems like Ellis’ steel clamps and beams can provide long-term savings for multi-phase or repetitive projects. For one-off or highly custom pours, consider the cost-effectiveness of custom solutions.
Jobsite Conditions and Safety Requirements
Evaluate site conditions such as space constraints, weather exposure, and ground stability. Ensure your chosen system meets all relevant safety standards and is compatible with your jobsite’s unique challenges.
Regulatory and Compliance Needs
Confirm that all formwork and hardware meet applicable building codes and industry regulations. Ellis products are engineered and tested for compliance, giving you added peace of mind.
Checklist for Selecting the Right Column Form
To simplify your decision-making process, use this step-by-step checklist:
-
Measure and Record Column Dimensions: Note the height, width, and shape of each column.
-
Identify the Type of Form Needed: Decide between wood, steel, fiberglass, or plastic forms based on project requirements.
-
Consult the Ellis Concrete Column Form Designer Tool: Input your column specs to get recommended clamp spacing and quantities for safe, efficient forming.
-
Review Technical Specs and Load Ratings: Check that your selected clamps, beams, and accessories meet or exceed your project’s structural demands.
-
Assess Site-Specific Challenges: Consider factors like uneven ground, limited access, or unusual shapes, and determine if custom solutions are needed.
- Contact Ellis for Expert Guidance: For complex or large-scale projects, reach out to our team for a personalized consultation.
“Tip: The right column forming solution isn’t just about hardware. It’s about having a partner who understands your project’s unique demands and supports you from planning through completion.”
— Luke Holmboe, VP of Marketing at Ellis Manufacturing
Ready to find the ideal column forming system for your next project? Use our online tools or contact Ellis Manufacturing’s experts today for tailored recommendations and jobsite-ready support.
Installation Instructions & Best Practices
Step-by-Step Installation Guide
Proper installation of your column form is needed to achieve a professional finish. Follow these steps to ensure a smooth, reliable process with Ellis’ column forming products:
-
Prepare the Site and Materials:
- Clear the area of debris and level the ground where columns will be placed.
- Gather all required Ellis column forms, clamps, beams, and accessories.
- Inspect all equipment for damage or wear before use.
-
Assemble the Column Forms:
- Position the wood, steel, fiberglass, or plastic forms according to your column dimensions.
- If using Ellis Scissor-Type Clamps, slide the clamps onto each side of the form, aligning them with recommended spacing from the Column Form Designer Tool.
-
Secure the Forms with Clamps and Accessories:
- Tighten Ellis clamps firmly to ensure even pressure and eliminate gaps.
- Add horizontal adjustable beams or bracing turnbuckles as needed for extra stability, especially for taller or heavily loaded columns.
-
Check Alignment and Plumb:
- Use a level or plumb line to verify the forms are straight and true.
- Adjust clamps and braces as necessary to correct any misalignment.
-
Apply Release Agent (If Needed):
- For reusable forms, apply a form release agent to prevent concrete from sticking and to ensure a clean finish.
-
Pour Concrete:
- Pour concrete evenly, avoiding overfilling or excessive pressure on any section of the form.
- Use a vibrator or tapping tool to eliminate air pockets and ensure proper compaction.
-
Monitor and Adjust During Pour:
- Continuously check form alignment and clamp tightness as concrete is poured.
- Make minor adjustments as needed to maintain straightness and prevent bulging.
-
Allow Concrete to Cure:
- Follow recommended curing times before removing forms.
- Protect columns from impact or disturbance during the curing process.
-
Remove Forms and Clamps:
- Once concrete has cured, carefully loosen and remove Ellis clamps and forms.
- Inspect the finished column for quality and address any surface imperfections as needed.
Common Pitfalls and How to Avoid Them
Even experienced crews can encounter challenges during column forming. Become aware of the most common mistakes and know how to prevent them. So you can ensure a smoother installation and achieve the best possible results on every project.
- Uneven Clamp Spacing: Always use the Concrete Column Form Designer Tool to ensure correct clamp placement and avoid awkwardly formed columns.
- Insufficient Bracing: For tall or heavily loaded columns, add extra bracing turnbuckles or beams to prevent movement during the pour.
- Skipping Pre-Pour Checks: Double-check alignment and tightness before pouring concrete to prevent costly rework.
- Removing Forms Too Early: Allow adequate curing time before stripping forms to ensure column strength and surface quality.
- Neglecting Safety Protocols: Always wear appropriate PPE and follow site safety guidelines when handling heavy forms and pouring concrete.
Maintenance, Removal, and Reuse
Follow these best practices to safely remove, maintain, and reuse your Ellis’ column forms:
- Cleaning and Storage: After use, clean Ellis’ clamps, beams, and accessories thoroughly to remove concrete residue. Store in a dry, organized area to prevent rust and prolong product life.
- Inspection:Regularly inspect all hardware for signs of wear, bending, or damage. Replace any compromised components before the next use.
- Safe Removal:Loosen clamps and remove forms gently to avoid damaging the finished column. Use proper lifting techniques and tools to prevent injury.
- Maximizing Product Lifespan: Follow Ellis’s maintenance guidelines and apply form release agents as recommended.
- Support and Troubleshooting:If you encounter challenges during installation or removal, contact Ellis’s support team for expert advice and solutions.
“A well-installed column form is the foundation of a successful project. Our goal is to make every step straightforward, safe, and reliable. So you can focus on building with confidence.”
— Troy Frost, VP of Sales at Ellis Manufacturing
Why Choose Ellis for Your Column Forming Needs?
Engineered Precision for Every Column
At Ellis Manufacturing, every column forming product is engineered for accuracy and reliability. Our products are designed to deliver straight, true columns on every project. Backed by rigorous quality assurance and decades of field experience. As we like to emphasize, “Precision isn’t just a feature. It’s our standard. We know that getting it right the first time matters most to our customers.”
Versatility and Dependability Across Applications
Ellis column forming clamps and systems are built to adapt. Whether you’re working on commercial buildings, industrial facilities, or infrastructure projects, our solutions accommodate a wide range of column sizes and shapes. Contractors and engineers across the United States trust Ellis for dependable performance in diverse environments. It always meets the flexibility and reliability in demand on the jobsite.
Commitment to Safety and Compliance
Safety is non-negotiable at Ellis. Our column forming products are developed to meet or exceed stringent industry standards, giving your team confidence on every pour. With built-in safety features and compliance-focused engineering, Ellis makes it easier to meet regulatory requirements and protect your crew.
Unyielding Quality and Lasting Strength
We use only premium materials. We’re talking about high-strength steel, precision components, and durable finishes. This ensures our clamps and systems stand up to demanding conditions. Every product undergoes comprehensive testing to guarantee it meets the highest benchmarks for strength and reliability. That’s why Ellis forming systems consistently deliver professional results, project after project.
Expert Guidance and Responsive Support
Choosing Ellis means gaining a true partner. Our team offers personalized consultation, selection guidance, and hands-on support at every stage. From planning through installation and beyond.
“We’re not just selling a product. We’re here to help you succeed.”
—Ellis Manufacturing
When you need advice, troubleshooting, or custom solutions, Ellis is just a call away.
Ready to experience the Ellis difference? Contact our experts today for personalized guidance on your next column forming project.
Frequently Asked Questions (FAQ)
What types of column forms does Ellis Manufacturing offer?
Ellis provides a range of column forming solutions, including scissor-type clamps, adjustable beams, and custom formwork components. Our systems are designed to fit square, rectangular, and circular concrete columns.
How do I know which column forming system is right for my project?
Start by measuring your column dimensions and identifying your project’s specific requirements. Use the Ellis Column Form Designer Tool or contact our experts. We can give recommendations based on your jobsite needs, budget, and timeline.
Are Ellis column forming products reusable?
Yes! Our clamps and beams are made from high-strength steel and built for repeated use across multiple projects. With proper maintenance and care, Ellis products deliver long-term value and performance.
How can I ensure proper alignment and safety during installation?
Always follow Ellis’s installation instructions and use our recommended clamp spacing. For tall or heavily loaded columns, add extra bracing and check alignment frequently during the pour. Our support team is available to guide you through best practices.
What should I do if I encounter a unique or challenging column shape?
Ellis specializes in custom solutions. Share your project details with our engineering team. We’ll help design and deliver formwork tailored to your specific needs.
How quickly can I get support or replacement parts if needed?
Our responsive support team is committed to your success. Contact us directly for fast assistance. Whether you need technical advice, troubleshooting, or replacement components.
Do Ellis products meet industry safety and compliance standards?
Absolutely. All Ellis column forming products are engineered to meet or exceed relevant safety regulations. Our goal is to give you peace of mind on every jobsite.
Where can I find technical specs and installation resources?
Detailed product specifications, technical documents, and installation guides are available on our website. You can also reach out to our team for one-on-one support and guidance.
Still have questions? Contact Ellis Manufacturing for expert answers and personalized support.
Get Started with Ellis Column Form Systems
Ellis Manufacturing is more than a product supplier. We’re your partner in building stronger, safer, and more efficient concrete column forms. Our commitment to precision, jobsite safety, and responsive support ensures your project's success.
Ready to start your next project? Call Ellis Manufacturing at (800) 654-8311 or email support@ellismfg.com to request a consultation or quote. Our expert team is here to help you achieve the best results for your column forming needs.
