If you're a construction professional, engineer, or site manager, you already know that a girder is a primary support beam that serves as the backbone of a structure. But understanding what a steel girder beam is represents only the first step. The critical challenge—the one that defines a project's safety, budget, and success—is knowing how to properly and efficiently support it.
Incorrectly supporting a structural beam can lead to catastrophic failures, dangerous job sites, and costly delays. The difference between a smooth project and a troubled one often comes down to the quality and application of its support systems.
This article provides an overview of the challenges and solutions involved in steel girder support. We will explore engineered systems, common techniques, and proven safety considerations to help professionals understand the available tools for managing critical loads, from temporary shoring to permanent reinforcement. This information is for reference only and is not a substitute for the guidance of a qualified local professional engineer.
The Critical Challenge: Why Proper Girder Support is Non-Negotiable
In modern beam construction, there is no room for error. The integrity of an entire structure rests on the stability of its primary girders, and ensuring that stability during every phase of a project is a non-negotiable responsibility. The stakes are defined by three core areas of risk:
-
Structural Integrity: Improper beam support during construction can introduce stress, deflection, or torsion that permanently compromises the girder and the elements it supports. This can create structural weaknesses that persist for the life of the building.
-
Job Site Safety: The most immediate risk is to personnel. A failure in a shoring system can lead to collapse, posing a direct and severe threat to everyone on site. This is a primary concern for contractors and an absolute priority for emergency rescue teams performing structural stabilization.
-
Financial Impact: The financial fallout from inadequate support is significant. It can lead to project delays measured in weeks or months, expensive rework, failed inspections, and, in the worst-case scenarios, catastrophic structural failure resulting in devastating financial and legal consequences.
| These risks are present in a wide range of common scenarios, each demanding a robust and reliable support solution: |
|---|
|
The Ellis Ecosystem: Solutions for Girder Support
Addressing these high-stakes challenges requires more than just individual parts; it requires an integrated system engineered for strength, adaptability, and safety. At Ellis Manufacturing, we provide a complete ecosystem of girder support solutions designed to meet the demands of any project.
Unmatched Strength for Critical Structures: Heavy-Duty Lifting & Shoring
|

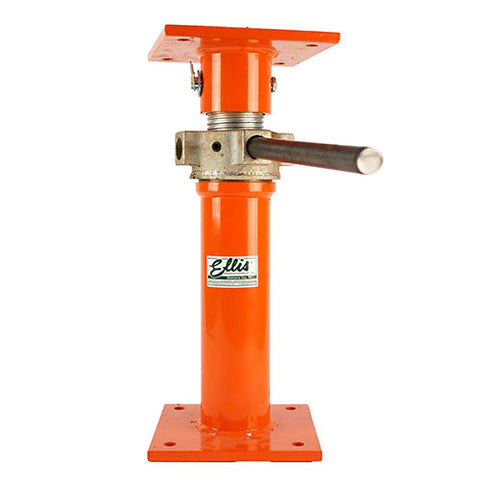

The Challenge: Supporting massive, concentrated point loads from large steel girders, precast concrete beams, or thick concrete slabs. The Solution: Ellis Heavy-Duty Steel Lifting Shores are engineered specifically for these applications. Built from high-strength steel, they provide the raw power needed for the most demanding jobs.
|
Adaptable Support for Every Structural Challenge: Versatile Shoring Systems
|
The Challenge: Projects vary in scale and complexity. A single solution rarely fits all, from residential foundation repair to multi-story commercial construction. The Solution: We offer a comprehensive range of shores and jacks designed for maximum versatility, providing reliable support for both temporary bracing and permanent reinforcement of floors, ceilings, and beams made of wood, steel, or concrete.
|
Streamlined Shoring for Faster Project Completion: Time & Labor Savers
|
The Challenge: In construction, time is money. Contractors need solutions that accelerate project timelines without compromising safety or quality. The Solution: Ellis provides innovative products designed to optimize workflow and reduce labor on site.
|
The Complete System: Essential Accessories for a Professional Job
|
The Challenge: Achieving a perfect, secure fit between the shoring and the girder is critical for safe load transfer. The Solution: Our ecosystem includes a full range of accessories designed to integrate seamlessly with our shores and jacks. Components like steel U-Heads (for cradling I-beams) and long adjustment rods ensure you have the right interface for any type of girder or beam, creating a stable, complete, and professional support system. |
The Ellis Standard: Why Professionals Choose Us for Girder Support
For over 70 years, professionals have trusted Ellis Manufacturing because we provide more than high-quality products—we provide verifiable peace of mind. Our commitment is built on a foundation of rigorous engineering, hands-on expertise, and an unwavering dedication to safety.
Engineered for Safety, Built for Trust
While others may make claims, we provide proof. Every Ellis shoring product is engineered with a 2.5:1 safety factor. This isn't a theoretical number; it is derived from real-world failure tests where we push our products to their absolute breaking point. This data-driven approach ensures that our load ratings are conservative and reliable, giving you a predictable margin of safety on every job. This commitment is validated by third-party load data, providing transparent and trustworthy performance.
Expert Consultation, Not Just a Catalog
We know that the toughest projects require the right equipment. Our team consists of problem-solvers and industry experts who provide hands-on consultation. We work directly with you to understand the specific requirements laid out by your engineers. Based on those load capacities, heights, and site conditions, we can recommend the right Ellis system to get the job done safely and efficiently.
Have a Complex Project? Consult Our Team Today to Match Your Specs.
A Legacy of American Innovation Since 1951
For over seven decades, Ellis Manufacturing has been a trusted name in the construction industry. Our longevity is a testament to our commitment to quality, performance, and customer support. When you choose Ellis, you're choosing a partner with a proven history of excellence and innovation.
The Future of Structural Support
Staying ahead in the construction industry means understanding the forces that will shape its future. At Ellis, we are focused on providing solutions that meet the needs of not just today's job sites, but tomorrow's as well.
The Economics of Reusability
The smartest contractors no longer think in terms of product cost, but in terms of Total Cost of Ownership (TCO). A cheap, low-quality import or a disposable lumber shore may seem affordable upfront, but the cost of replacement, waste disposal, and potential failure adds up. Investing in durable, reusable steel shoring from Ellis is a strategic decision that delivers a superior return on investment over the life of the equipment, all while promoting a more sustainable job site.
Shoring for the Adaptive Reuse Revolution
A major trend in urban development is adaptive reuse—transforming historic buildings into modern offices, apartments, and retail spaces. These projects require a surgical approach, supporting century-old structures while their interiors are completely retrofitted. Ellis's adjustable, high-capacity shoring systems are perfectly suited for this niche, providing the precision and strength needed to preserve the past while building the future.
Your Partner for Strong, Safe, and Efficient Construction
From a support beam in a residential basement to a network of roof girders in a commercial structure, the principles of safe support are paramount. Executing a safe plan requires equipment that is strong, reliable, and engineered to a standard that leaves no room for doubt.
Ellis Manufacturing provides more than just steel—we deliver complete, proven, and expertly-backed girder support systems. We are your partner in building with strength, safety, and confidence.
Ready to Find the Right Equipment for Your Project? Call Us Today to Get a Quote for Your Project.
Frequently Asked Questions (FAQ)
What is the difference between shoring and reshoring?
Shoring is the process of temporarily supporting a structure during construction or repair. Reshoring is the process of installing temporary supports under a newly cast concrete slab to help it bear its own weight and any construction loads until it reaches its full design strength.
How do you determine the load capacity needed for shoring a steel girder?
This must be determined by a qualified person, such as a structural engineer. It involves calculating the dead loads (the weight of the structure itself) and live loads (temporary loads like workers, equipment, or environmental factors) that the shoring will need to support.
Can Ellis shores be used for permanent support?
Ellis Screw Jacks are designed and commonly used for permanent support applications, such as correcting sagging floors or providing lasting reinforcement. Our standard shoring products are designed for temporary support, but a qualified engineer can determine their suitability for specific permanent applications.
What are the benefits of a lattice girder or truss girder?
A lattice girder (or truss girder) uses a web of interconnected elements to achieve high strength over long spans with less material. This efficiency can reduce costs and simplify installation. However, the complex geometry requires careful analysis by an engineer for proper support.
How far apart should shoring beams be placed?
The spacing of shoring beams is a critical calculation that depends on the load being supported, the capacity of the shoring equipment, the strength of the slab or beam being shored, and the soil/base conditions. This must be specified by a structural engineer or other qualified person. For concrete reshoring applications, the Ellis Reshore Spacing Calculator can be a valuable tool for planning.
Disclaimer: The information provided in these articles is for general informational purposes only and is not intended as a substitute for professional engineering advice. Every project has unique requirements and complexities. Therefore, it is essential to consult with a qualified professional engineer to guide you through the specific nuances of your individual project and ensure its safety and compliance. These articles do not offer engineering guidance.
